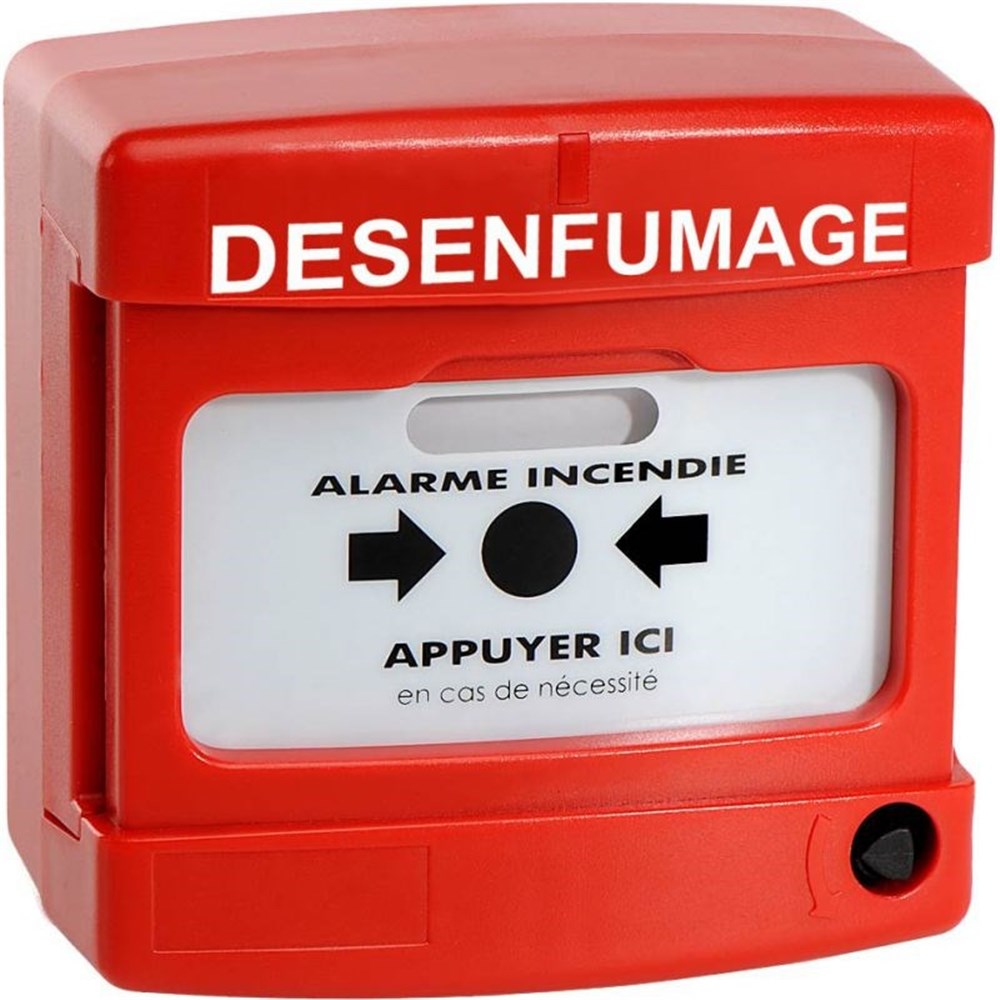

DM Smoke control
Manual release for smoke extraction
Technical specifications :
- Surface-mounted or flush-mounted (60 mm diameter box)
- Dimensions: (mm) H 94 x W 94 x D 54
- Weight : Net - 195 g Brut - 230 g
- Colors: Red
- Material Manual release :ABS
- Protection rating: IP 44 / IK 07
- Operating temperature: - 10°C to + 55°C
- Contact with 10K Ohms resistor, 30 mAfrom 0 to 60 Vdc
- Contact with resistor 910 Ohms, 30 mAfrom 0 to 30 Vdc
- Contact with resistor 470 Ohms, 30 mAfrom 0 to 15 Vdc
- Contact: Inverter 0.5A/ 0 to 60 Vdc
- Condition: Type A conventional, indoor environment
- Reference : 10020
