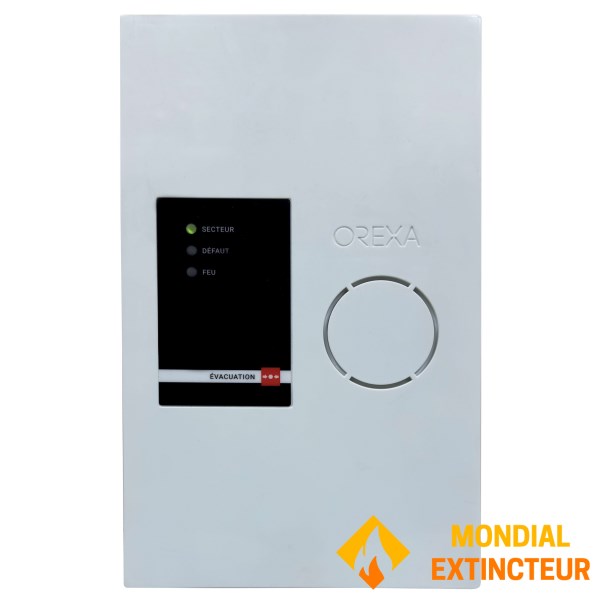

Type 4 wired alarm 1 loop Orexa

The wired Orexa type 4 fire alarm is available in 1-loop, 1 to 2-loop and 1 to 4-loop versions. It features an audible alarm and a manual activation button. This product complies with type 4 regulations. The back-up power supply, based on supercapacitors, guarantees an autonomy of 12 h in standby mode and 5 min. in alarm mode. This product saves time when the alarm is triggered: the zoning system enables rapid targeting of the affected area.

Technical specifications :

• Power control: Yes.
• Main power supply: 100-240 Vac 50-60Hz.
• Emergency power supply: Supercapacitors.
• Maximum number of DM per loop: 32.
• Audible alarm: NFS 3200 fire alarm.
• Noise level: 90 dB at 2 m.
• Maximum audible and visual alarm duration: 5 min.
• Relays: 2 relays = ALARM and FAULT.
• Number of contacts / relays: 3 common contacts NO and NC 1A 50V max.
• Connectivity: Smartphone Low Energy connectivity.
• Smart Orexa application: self-diagnosis - history - personalization.
• Protection rating: IP55.
• Materials: ABS.
• Monitoring: DM lines and diffuser outputs.

Dimensions W. 170 x H. 275 x D. 45 mm
