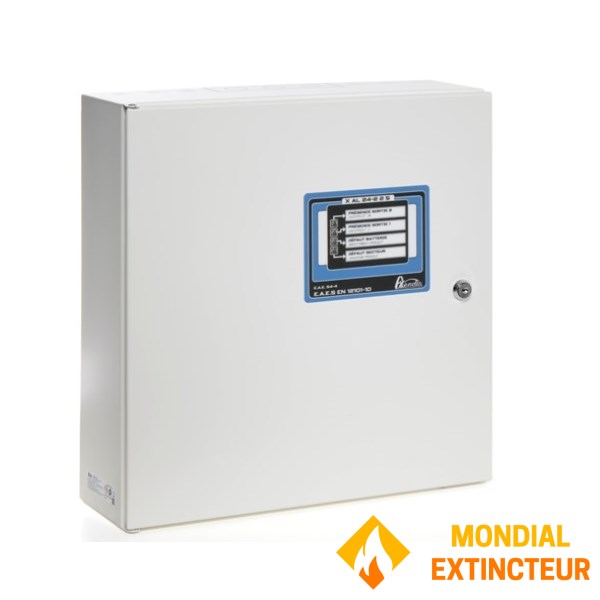

Uninterruptible power supply 24V - 12Ah

The safety power supply is integrated into the fire detection and fire safety systems.

This equipment is intended for connection to the 230 V public supply network. To avoid any risk of electric shock, all work must be carried out with the power disconnected (upstream two-pole circuit breaker open) and only by qualified personnel.

Certified to standard EN-54-4 & EN 12101-10

Advantages :

• Reliable output voltage
• Continuous mains fuse check
• Front panel communication via LEDs (mains, use, battery) and remotely via dry contacts
• Easy to install
• Respect for the environment (low energy consumption)

Features :

• Condition: Type 1 (-5 to +40°C)-
• Main power supply: 230Vac (+10% / -15%) 50/60Hz 90A
• Secondary power supply: 2x12 VDC - 12Ah - 2A- - 2A
• Relay type: Dry contact
• 1 A @ 30 VDC- continuous current
• Alternating current 1 A @ 277 VAC-
• Number of outings: 2-
• Protection rating: IP30 / IK07-
• Net weight: 10.1kg with 12Ah batteries
• Dimensions: 451 x 427 x 137 mm (LxWxD)

Supplied with batteries: 2 x 12V- 12Ah batteries
