24VCC - 360 W - 1 H

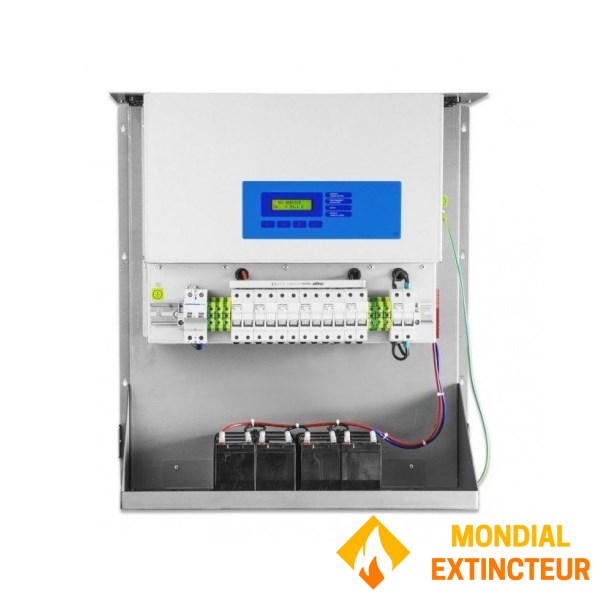

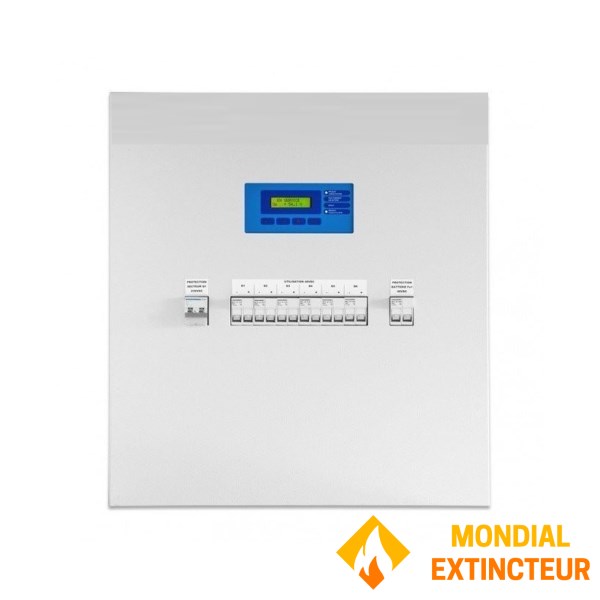

Central source 24VDC - 360 W - 1 H
48vdc central emergency lighting source
General characteristics :
- Input voltage: 230 Vac single-phase
- Output voltage: 24 VDC
- Output power: 3600 W - 16A
- 6 Standard departures included
- Autonomy: 1 hour
- Type B Permanent // Maintenance-free waterproof pb battery
- Protection of the battery by a discharge limitation device
- Alarm report: 4 NO/NC dry fault contacts are available
- Alpha digital display: Voltages, currents and faults
- Automatic monthly battery test
- Manual navigation and battery test keypad
- Dimensions: 600 x 225 x 650
- Weight 60 kg
- Complies with standard EN50171 / NFC 71815
BC Panic option on request (additional cost)
Voluntary deactivation of ambient lighting (separate box) Combined with a permanent central source, it switches the permanent ambient (panic) lighting to non-permanent mode. Resetting to permanent mode can be done at any time, either manually or automatically on mains power failure.
Fault Report option (additional cost)
The fault report alarm box has 4 potential-free inputs on relay contacts associated with LEDs on the front panel.
- Reference : 24M360
