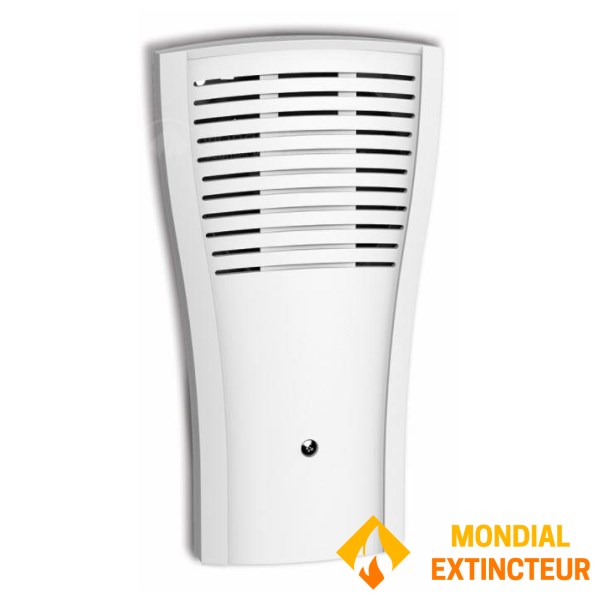

Sound diffuser for smoke control unit

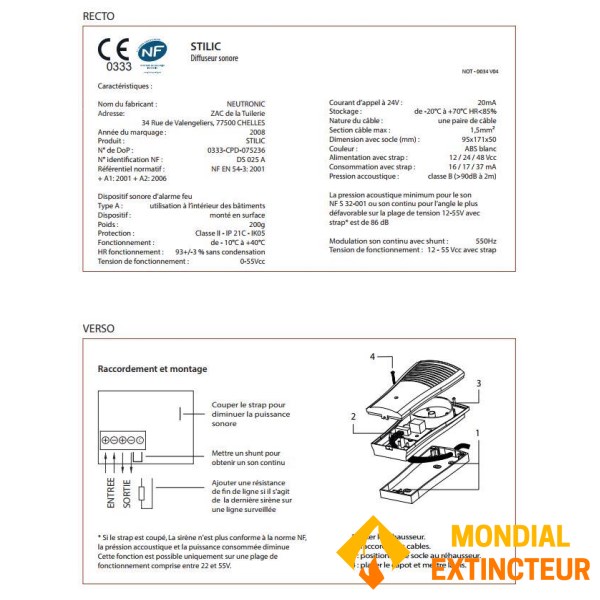

Technical specifications :

• Dimensions with base (mm): D=95*171*50
• Weight : 200 G
• Colour: white RAL 9010 GLOSS V.0 ANTI U.V.
• Protection class: IP 21C
• Protection class against electric shock: Class II
• Operating temperature: -10°C to +40°C
• Operating RH: <95% non-condensing
• Storage: +10°C to +40°C
• Storage RH: <85
• Operating voltage: 12Vdc to 55V

This audible alarm can be integrated into any type of décor and can be connected to all existing alarm systems. This new box, with its modern design, fits in perfectly with premises open to the public.

The siren is supplied with a riser for easy cable routing and installation. An electronically-controlled cut-off threshold enables it to be used on self-monitored lines. It delivers remarkable sound power in a compact package with very low power consumption.

Power class "B" and tones comply with standard AFNOR NFS-32-00l.
