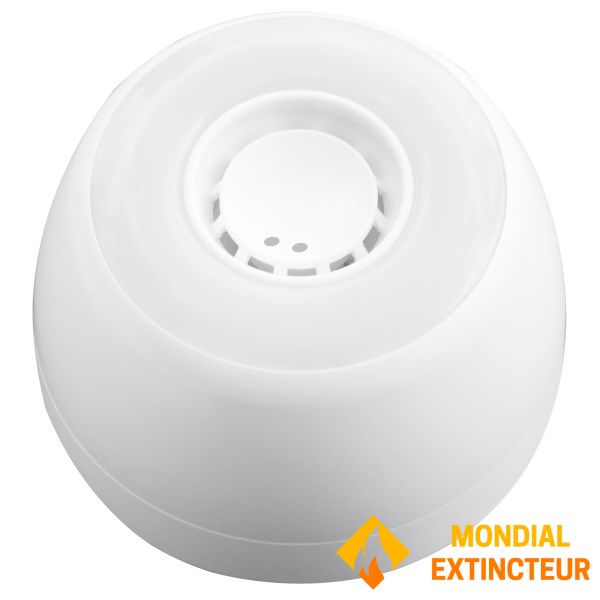

Sound and light diffuser - T4 and PPMS alarms - Axendis

Audible and luminous type 4 alarm and PPMS alarm.
This diffuser is compatible with the Type 4 range.

It emits the Afnor NF S32-001 sound or the PPMS alarm sound and emits a white or blue flash.

Technical specifications :

• Voltage : From 10 Vdc to 30 Vdc
• Rated voltage: 18 Vdc
• Alarm tone voltage: 18 Vdc 15 mA (type 4) or 18 Vdc 11 mA (PPMS).
• Operating temperature: -10°C to + 55°C 
• Storage temperature: -20°C to +65°C.
• Protection rating: IP30, IK07
• Material, colour ABS, white.
• Dimensions Ø110 mm x H 67 mm with base, H 49 mm without base.
• Mounting centre distance From 44 mm to 61 mm
