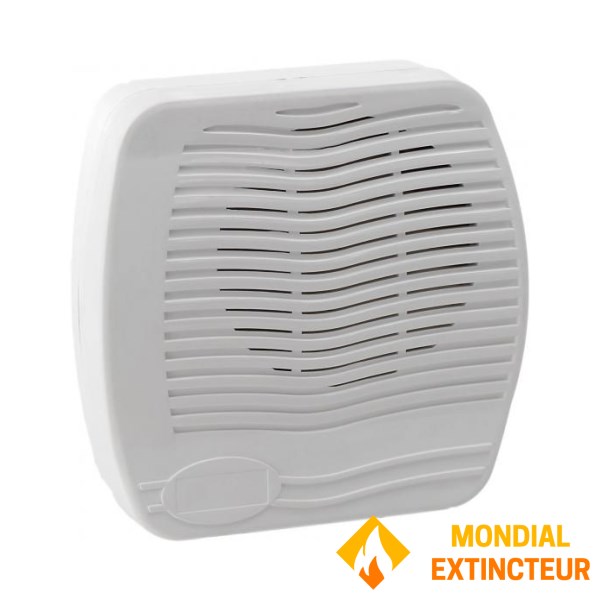

Diffuseur sonore Axendis à message enregistré
Description :
Certified to reference standard EN 54-3 of 2001 + A1 of 2002 + A2 of 2006
The recorded message sound diffuser is a voice alarm device that can be integrated into fire detection and alarm systems.
It is used to warn the occupants of a building of the presence of a fire risk. It broadcasts the voice message and/or sound NF S 32 001. The sound diffusers must be audible from all points in the building where they are installed.
CHARACTERISTICS
- Power supply: 10 V to 60 Vdc
- Current consumption mA: 375 (12V) - 155 (24V) - 80 (48V) - 100 (60V)
- Power: 3.7 to 6 W
- Language: French / English
- Operating temperature: -10°C to + 55°C
- Material / Colour: ABS V0 / White
- Protection rating: IP 40 / IK 07
- Sound power and sound: 96 dB at 1 m (Class B) NF S 32 001
- Environment: Type A (indoor)
- Weight: Net - 475 g Gross - 565 g
- Dimensions: (mm) H 132 x L 130 x W 60
- Cable to be used:CR1 type, 2 conductors 1.5 mm² to 2.5mm²
- Reference : 013809
