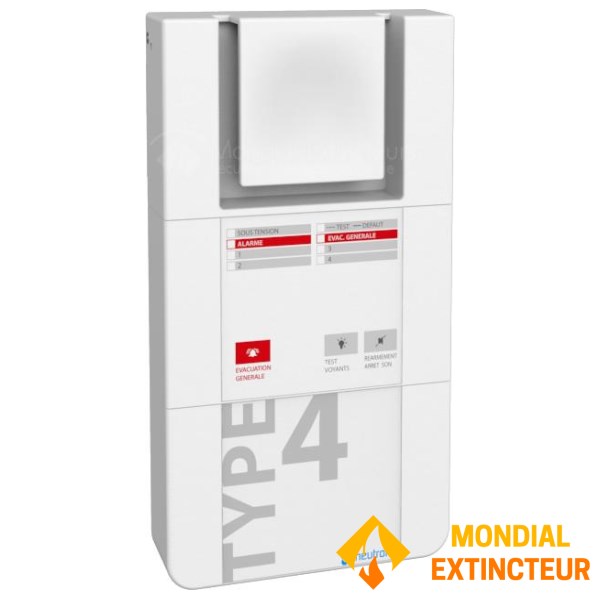

Type 4 alarm - 4 Neutronic loops
Description :
The signalling panel is intended for use in establishments open to the public in accordance with the regulations of articles L15 and L16 on fire safety systems. It manages alarms and works with manual triggers (DM). This panel provides visual and audible signalling from the front.
The general evacuation alarm lasts for 5 minutes with automatic cut-out, while the restricted alarm can be set from 0 to 5 minutes by pressing a manual release.
"Plus" points :
- Up to 25 diffusers can be connected.
- 32 manual triggers can be connected per loop, for a total of 128.
- Battery life: 24 hours standby and 5 min alarm.
- Restricted alarm: adjustable from 0 to 5 minutes
Technical specifications :
- Sound: >90dB.
- Power supply: 230 V, 50 Hz.
- Battery life: 48 hours standby + 5 minutes general alarm.
- Number of DM: no technical limit.
High-quality material, download the "pdf" catalogue, you'll find all our product information.
- Reference : 013933
