LORA-CERTIFIED RADIO COMMUNICATION PROTOCOL WITH 24/7 MONITORING OF DEVICE STATUS
Addressable (without GSM Module)
-28%

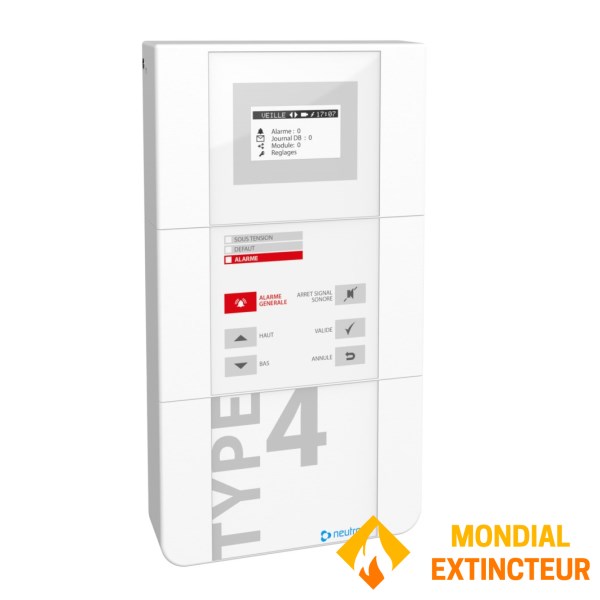

Centrale d’alarme de type 4 à piles radio adressable Neutronic - TX4C
TX4 RANGE
Description :
The very first type 4 radio addressable control unit and its complete range offer you the possibility of pairing 255 peripherals. The entire device can be programmed using intuitive software that can be accessed using any web browser.
This equipment is intended for use in establishments open to the public and workers.
4 CONFIGURABLE RELAYS
A WIDE CHOICE OF DIFFUSERS AND TRIGGERS
REDUCED MAINTENANCE COSTS
Contents of packaging
1 TX4 control unit
1 Antenna (2 if GSM option)
1 Aerial cable
1 Ethernet cable
Product details
- Link control for LoRa-certified devices
- Free-field range: 800 m maximum
- Individual identification by the control unit of devices in alarm or fault.
- Main power supply: 230V ±10% 50Hz
- Central backup power supply: Ni-Mh 12V - 1800 mAh battery
- Autonomy: 12 hours
- Radio card power supply: 2 AA alkaline batteries*
- Sound diffuser power supply: 1 x 9 V 0.62 Ah - 6LR61 alkaline* battery
- Relay option - dry contact: 0.25 A - 250 Vac or 1 A - 24 Vdc
- Battery life: 2 years standby + 2.5 hours alarm
- General alarm duration: 6 min 30 s
- Range in an obstructed field: 200 m maximum
- Number of peripherals: 255
- Radio frequency: 868.3 MHz
- Material - Colour : ABS - White
- Enclosure protection: IP 40 / IK 07
- Electric shock protection: class II
- Dimensions (mm): 268 x 135 x 50
- Weight (with packaging): 700 g
- Batteries supplied
*** Without GSM Module for this model ***
- Reference : 013954
