TX4 RANGE

Description :

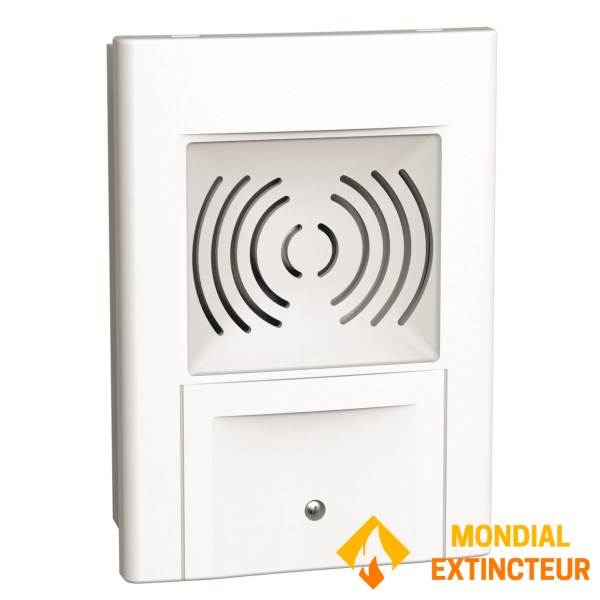

The type 4 radio addressable waterproof sound diffuser can be connected to the alarm network of up to 255 devices.

This type of equipment is intended for use in areas open to the public and workers.

The type 4 addressable radio fire alarm system has a maximum range of 800 metres in an open field and 200 metres in an obstructed field.

The alarm is ideal for large areas.

The lighting system is designed for the deaf and hearing-impaired, so that they can be alerted to a fire alarm.

Contents of packaging

- 1 Type 4 addressable audible diffuser

- 1 9V type 6LR61 alkaline battery.

- 2 1.5V AA alkaline batteries

- 1 Information leaflet

Product details

• Link control for LoRa-certified devices
• Luminous flux: > 100Lm
• Type of environment: type B (outdoor)
• Free-field range: 800 m maximum
• Range in an obstructed field: 200 m maximum
• Power supply: 1 x 9V 0.62 Ah type 6LR61 alkaline battery
• Radio card power supply: 2 AA alkaline batteries
• Battery life: 2 years standby + 2.5 hours alarm
• General alarm duration: 5 min 30 s
• Number of peripherals: 255
• Radio frequency: 868.3 MHz
• Material - Colour : ABS - White
• Enclosure protection: IP 65 / IK 07
• Dimensions (mm): 145 x 145 x 74
• Weight (with packaging): 460 g
• Batteries supplied
