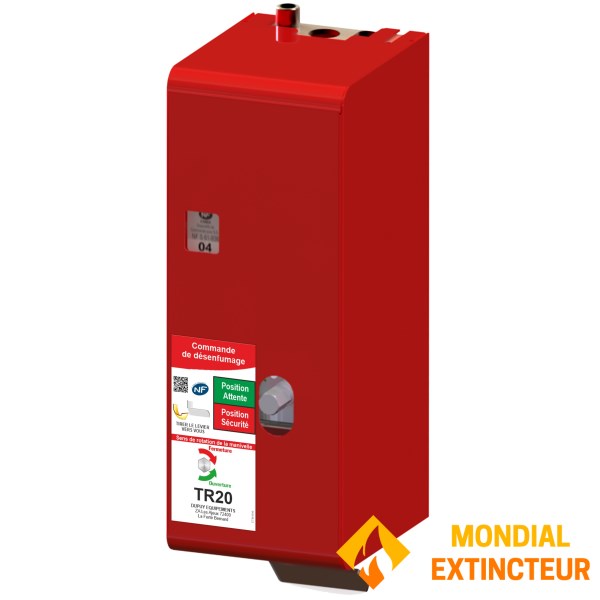

NF-certified cable smoke extraction winch with release lever
This winch is the most powerful you'll find: 140 daN - Manual release
Supplied with crank handle, without galvanised cable.
Optional electric or pneumatic remote control
Installation advice :
- Drill the fixing holes using the winch support and fix the support using 4 Ø6 screws at a height of between 0.90 m and 1.30 m from the ground (in accordance with standard NF S 61-932).
- Make the winch/outlet link a maximum of 15m if the installation is fully visible, otherwise 8m.
- Maximum of 3 Ø40mm pulleys.
- Protective sheath up to 2.5m from the ground.
- Reference : TR20
