BAAS Sonora Flash Manual - Sound NFS 32001

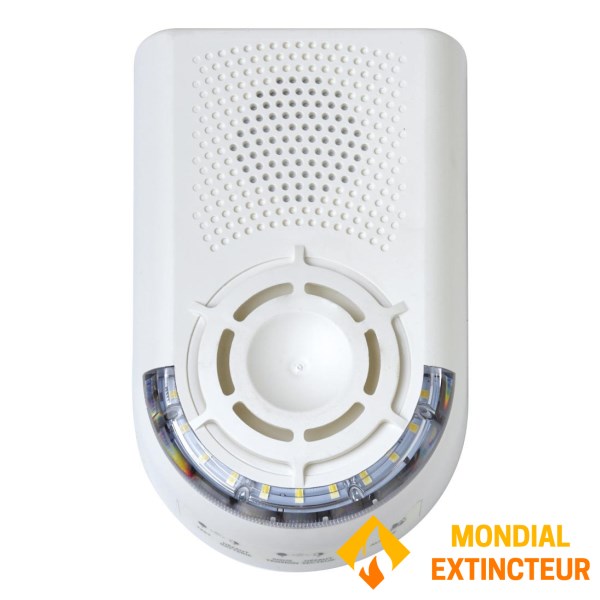

T he Sonora BAAL-Ma is a stand-alone illuminated alarm unit designed for SSIs fitted with Type 3 Alarm Equipment (AE).

Installation is made easy by the use of a connecting base onto which the BAAL-Ma plugs.

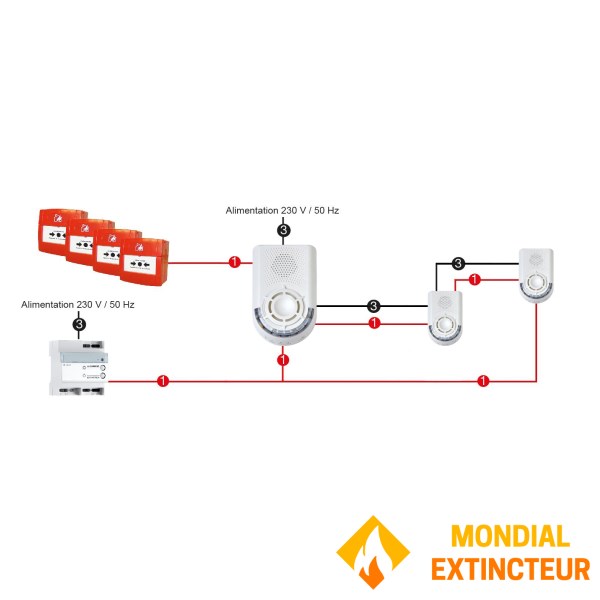

The BAAL-Ma broadcasts a class S general alarm signal (flash) in accordance with standard NFC 48150. This signal is triggered by a command from a loop of manual triggers.

The BAAL-Ma has a remote stop input.

GENERAL CHARACTERISTICS :

1 - Signal :

• Light signal compliant with EN54-23 type W, class S, range 8 m, in accordance with NFC 48150
• 250 maximum blocks
• 1000 m between each block

2 - Power supply :

• Main: 230 Vac +10% -15% 50 Hz
• Secondary: 4 ENERGIZER Recharge Power Plus 2000 mAh batteries - 4 VARTA Rechargeable ACCU 2100 mAh batteries
• Indicators for mains and battery faults
• Wiring on subbase

3 - Consumption :

• Battery life: over 72 hours followed by a 5-minute light alarm cycle

TECHNICAL SPECIFICATIONS :

• Mounted on a terminal base
• Dimensions: W 113.7 mm x H 175.1 mm x H 53.6 mm
• Weight: 600 g
• Material, colour: ABS, white
• Protection rating: IP 42, IK 07
• Operating temperature: -10 to +55°C
