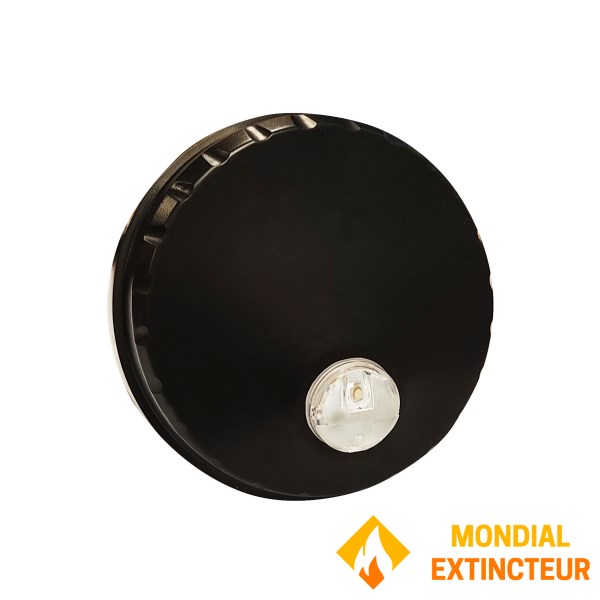

Blue light diffuser - PPMS

The PPMS Flash Sound Diffuser is a handset that can be integrated into the PPMS (Plan Particulier de Mise en Sécurité) containment system.

It has been adapted to respond to major risks, as part of the Vigipirate plan at "attack alert" level, and meets the security measures put in place by the French Ministry of Education for schools and educational establishments.

The containment device triggers a specific "containment" alarm.

Blue flashing light diffusers can be used to signal events or as part of the PPMS.

They are particularly suitable for noisy premises or those occupied by hearing-impaired people.

Technical specifications :

• Power supply: 9 V to 60 Vdc
• Max consumption: 30 (12V) - 39 (24V) - 40 (48V) - 41 (60V)
• Max. power: 0.36 to 2.5 W
• Operating temperature: -10°C to + 55°C
• Material / Color: Polycarbonate / White, (Diffusion glass) Blue
• Protection rating: IP 40 / IK07
• Ceiling or wall-mounted device
• Environment: Type A (indoor)
• Weight: 216g
• Dimensions: (mm) H 100 x W100 x D 70
• Cable to be used: CR1 type, 2 or 3 conductors 1.5 mm² to 2.5mm²
