24VCC - 1050W - 1 H

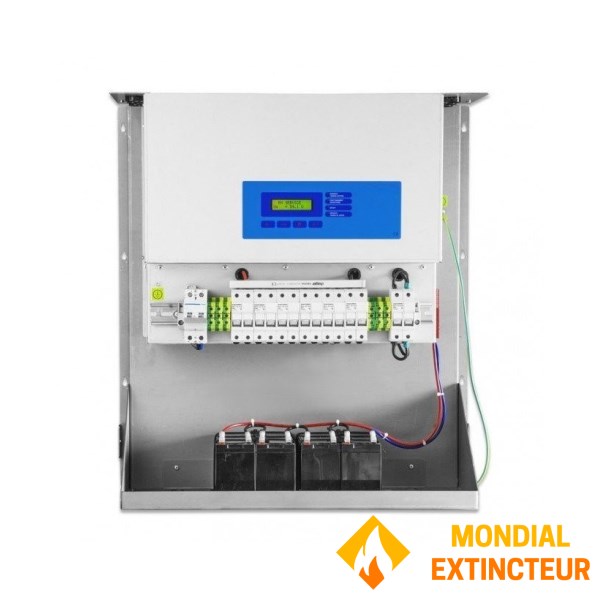

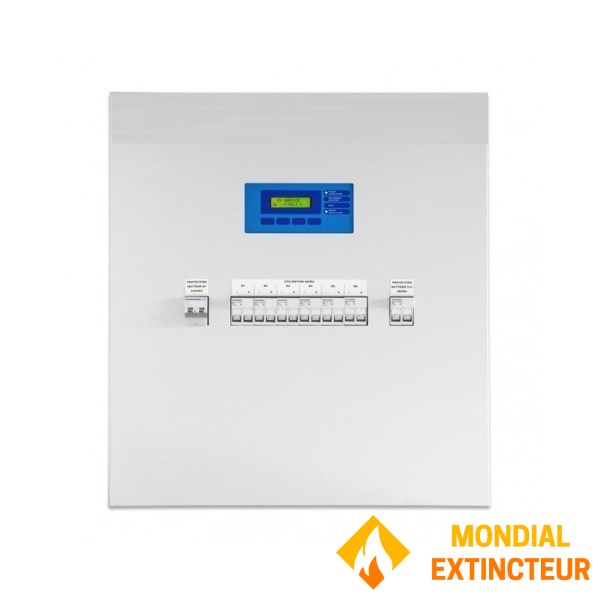

Central source 24VDC - 1050W - 1 H
Central emergency lighting source 48vdc
General features :
- Input voltage: 230 Vac single-phase
- Output voltage: 24 VDC
- Output power: 1050 W - 48A
- 6 Standard departures included
- Autonomy: 1 hour
- Type B Permanent // Maintenance-free waterproof pb battery
- Battery protection with discharge limiting device
- Alarm reporting: 4 NO/NC dry fault contacts available
- Alpha digital display: Voltages, currents and faults
- Automatic monthly battery test
- Manual navigation and battery test keypad
- Dimensions: 600 X 225 X 895
- Weight 116 kg
- Complies with standard EN50171 / NFC 71815
BC Panic option on request (additional cost)
Voluntary deactivation of ambient lighting (separate box) Used in conjunction with a permanent central source, it switches permanent ambient (panic) lighting to non-permanent mode. Permanent mode can be restored at any time, either manually or automatically on mains failure.
Fault report option (additional cost)
The fault report alarm box has 4 potential-free inputs on relay contacts associated with LEDs on the front panel.
- Reference : 24M1050
