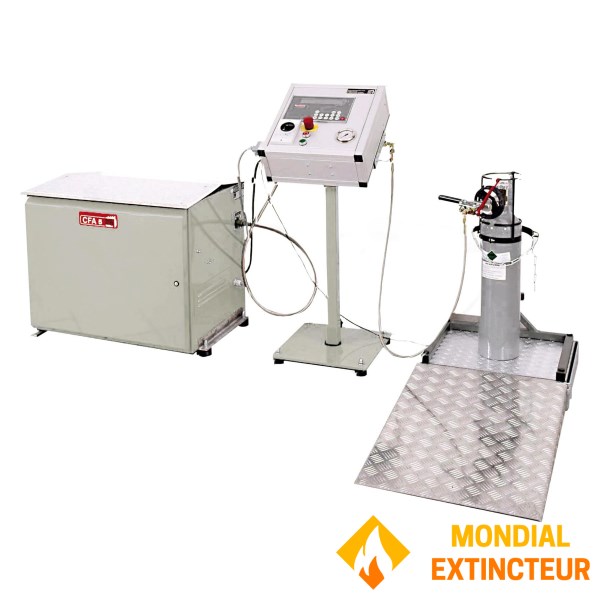

Filling CO2 extinguishers "CFA 5"

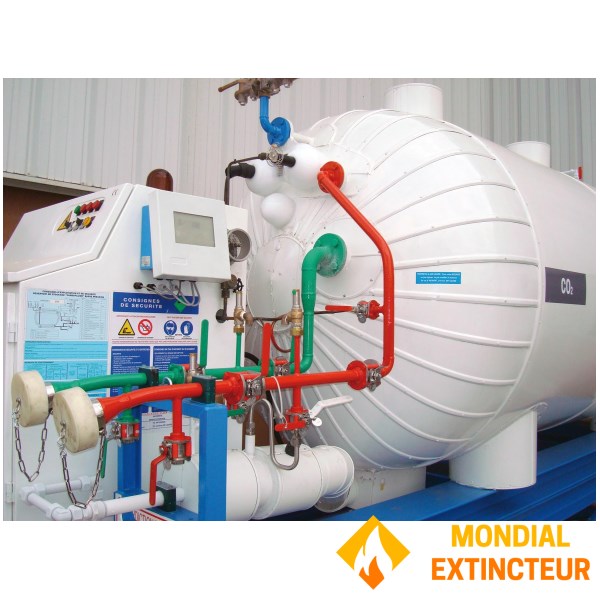

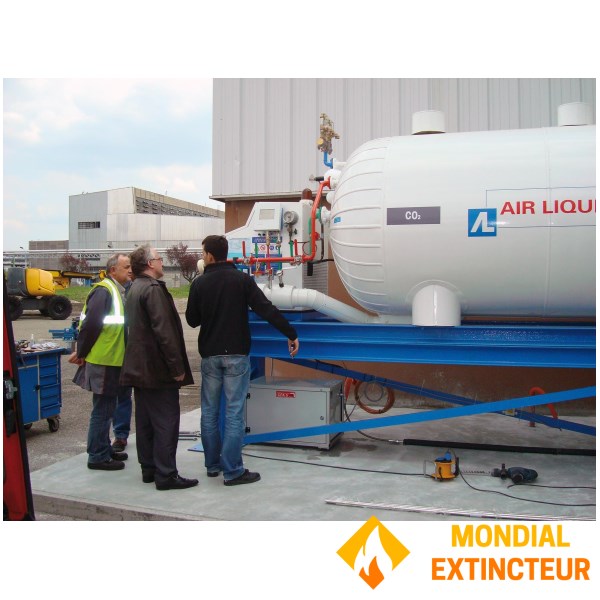

Machine for filling CO2 extinguishers from a low-pressure tank (15 to 20 bar).

• Automatic filling stop.
• Fills extinguishers from 2 to 45 kg.
• Filling rate: 5 kg/min.
• Electric motor: 1.5 kW.
• Safety valve: 2 x 130 bar

Technical specifications :

• Power supply: 400 V / 50 Hz
• IP: 54
• Weight: - Total weight: 175 kg
• Pump console: 98 kg
• Control panel: 37 kg
• Floor scale: 40 kg
• Pump console dimensions: W.845 x H.675 x D.600 mm
• Control panel dimensions: W.440 x H.1200 x D.430 mm
• Floor scale dimensions: W.580 x H.1100 x D.1135 mm
