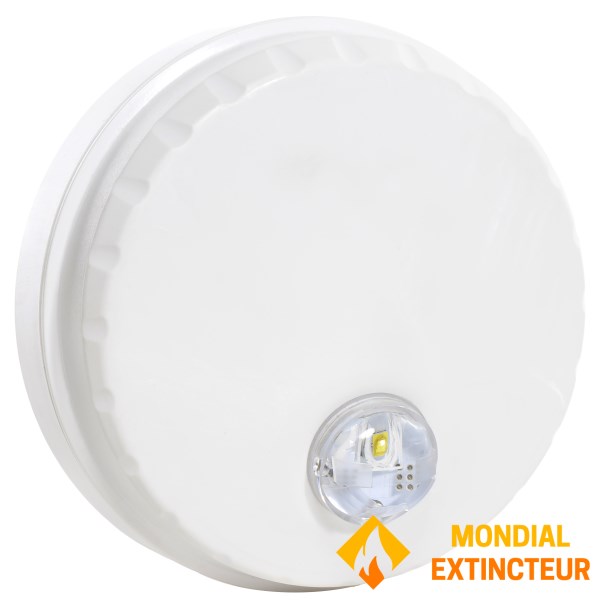

Flash white wall diffuser - NF certified - Axendis

The white visual fire alarm is integrated into fire detection and alarm systems. It is used to warn people in a building of the presence of a fire hazard. It emits a light signal that alerts occupants of the protected premises and enables them to take appropriate safety measures. Available in wall or ceiling mounting

Technical specifications :

• Power supply: 9 V to 60 Vdc
• Max mA consumption: 80 (9V) - 40 (30V) - 25 (60V)
• Operating temperature: -10°C to + 55°C
• Material / Color: ABS / White
• Protection class: IP 41
• Wall-mounted device
• Environment : TypeA(indoor)
• Weight : Net - 125 g
• Dimensions: (mm) Ø 100 x H 21.2
• Cable to be used:CR1 type, 2 x 1.5 mm² to 2.5mm²
