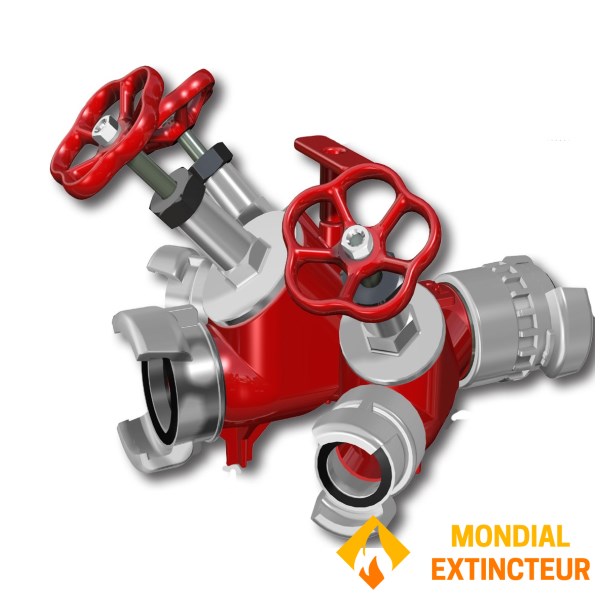

Flying divider - 1 input - 3 outputs

Handwheel valve with DSP DN 6 inlet and 3 outlets composed as follows:

• 1 dSP output DN65
• 2 dSP DN 40 outlets with lock

W414 mm X D420 mm X H286 mm

Weight : 6 Kg

Technical specifications :

• DSP connections standard - NF S61-701
• Standard Storz fittings - DIN 14345

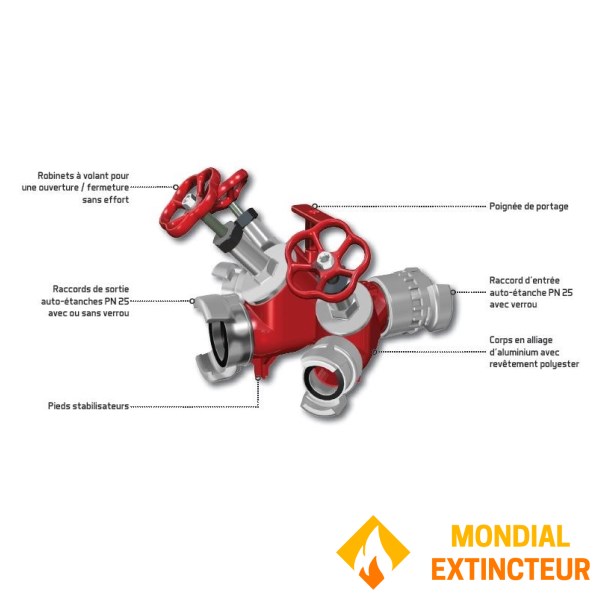

Construction/CORPS

• Heat-treated primary aluminum alloy
• Polyester coating

Hydraulic characteristics

• Nominal pressure 16 bar
• Test pressure 25.5 bar

Opening / closing

• 3 independent handwheel valves
• by dampers
