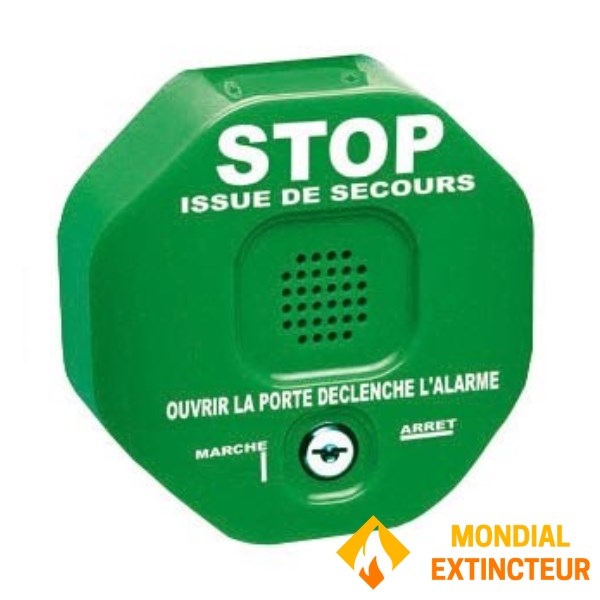

• This self-contained alarm (battery-powered) sounds an alarm whenever a door is opened for security or evacuation purposes.
• A key is used to start and stop the machine.

Technical specifications :

• Case: ABS Green
• Power supply: 9 V battery included or 12 Vdc
• Alarm current: 200 mA
• Standby current: 10 µA
• On/off switch: By key
• Programming: By jumper
• Alarm delay after door opening: 0 s or 15 s
• Choice of alarm duration: 30 s, 180 s or continuous
• Siren: Built-in
• Noise level: 97 dB at 1m
• Input: Start and stop key
• Output: NO or NC dry contact
• Relay output: 9 Vdc 40 mA
• Dimensions: Ø 127 x D.51 mm

• Product content :

• 1 Emergency exit alarm
• 1 9 V battery
• 2 fastening screws
• 2 start and stop keys
• 1 key + tamper-proof screw

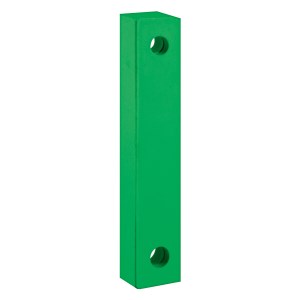

• 1 magnet + 4 spacers
