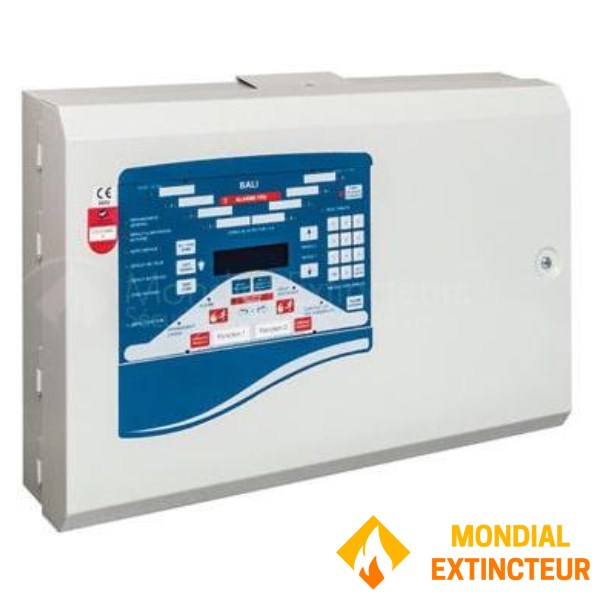

Type 1 fire alarm - CMSI 24 ZONES
BAYA is a fire detection system comprising a conventional ECS (Equipement de Contrôle et de Signalisation) integrating a CMSI (Centralisateur de Mise en Sécurité Incendie).
This is the only type of alarm equipment that can include automatic fire detectors (AFD).
Control of the emergency functions (C.M.S.I. section) is independent of the fire detection section (E.C.S. section): in the event of a system fault or loss of power to the fire detection section, the general evacuation control remains available for at least 1 hour.
In addition, the C.M.S.I. section has its own power supply consisting of an A.E.S. (Alimentation Electrique de Sécurité) compliant with standard NF S 61-940. This AES is an integral part of the ECS / CMSI BAYA.

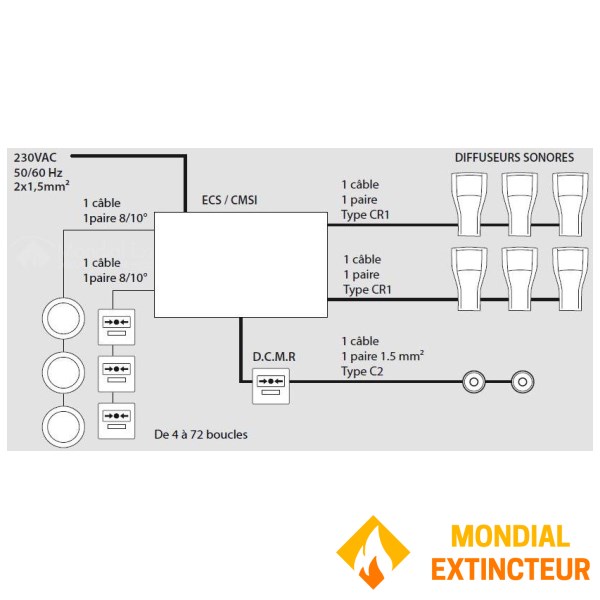

- Upgradeable control and signalling equipment for up to 72 fire detection zones of automatic detectors or manual triggers for a maximum of 512 points
- Maximum loop length: 1km
- Wiring: 1 pair 8/10th mini screen connected
- Up to 32 automatic detectors or manual releases per loop

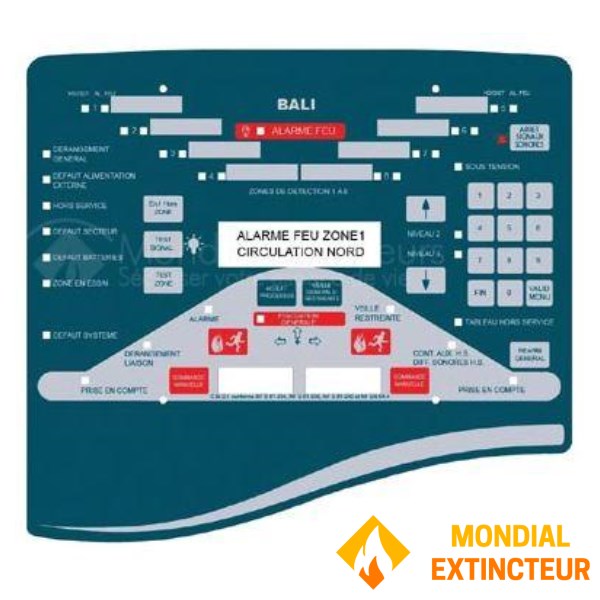

- 2-line / 16-character alphanumeric display for :
- clear labels for detection zones in alarm or fault condition, in addition to standard indicator lights
- plain-language messages and details on the nature of a fault (power failure, short-circuit, etc.)
- menus to assist commissioning and operation
- ability to display site name in standby mode
- Microprocessor-controlled operation
- Level access and programming via integrated numeric keypad
- Dry contact outputs for "fire" and "fault" "alarms"
- Operating aid with connection option :
- synthesis reports (buzzer, fire alarm and general fault syntheses)
- output to G.T.C., C.M.S.I.
- Power supplied by an Electrical Power Supply (E.P.S.)
- Reference : BAYA24
