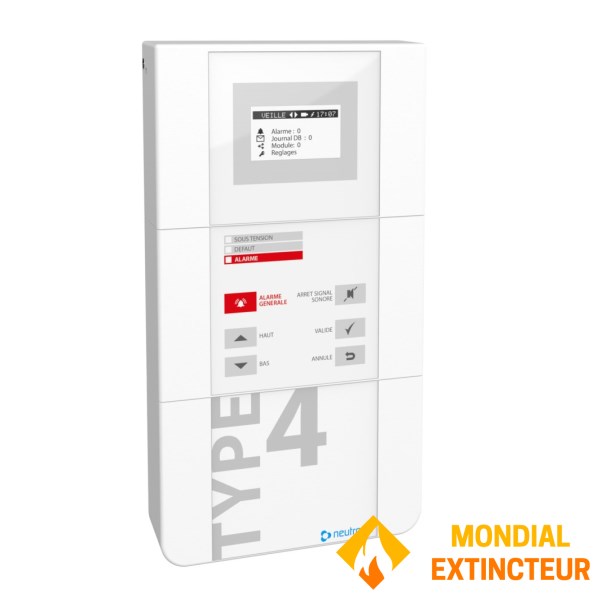

Battery-operated, addressable type 4 alarm control unit

TX4 RANGE

The very first type 4 radio addressable control unit and its complete range offer you the possibility of pairing up to 255 peripherals. The entire device is programmable using intuitive software accessible with any web browser.

This equipment is intended for use in establishments open to the public and workers.

Package contents

• 1 TX4 control unit
• 1 Antenna (2 if GSM option)
• 1 Antenna cable
• 1 Ethernet cable

Product details

• LoRa-certified device link control
• Free-field range: up to 800 m
• Individual identification by the control unit of devices in alarm or fault.
• Main power supply: 230V ±10% 50Hz
• Central backup power supply: Ni-Mh 12V - 1800 mAh battery
• Operating time: 12 hours
• Radio card power supply: 2 AA alkaline batteries*
• Sound diffuser power supply: 1 x 9 V 0.62 Ah - 6LR61 alkaline* battery
• Relay option - dry contact: 0.25 A - 250 Vac or 1 A - 24 Vdc
• Autonomy: 2 years standby + 2.5 hours alarm
• General alarm duration: 6 min 30 s
• Range in obstructed field: up to 200 m
• Number of devices: 255
• Radio frequency: 868.3 MHz
• Material - Color: ABS - White
• Enclosure protection: IP 40 / IK 07
• Electric shock protection: class II
• Dimensions (mm): 268 x 135 x 50
• Weight (with packaging): 700 g
• Batteries supplied

*** Without GSM Module for this model ***
