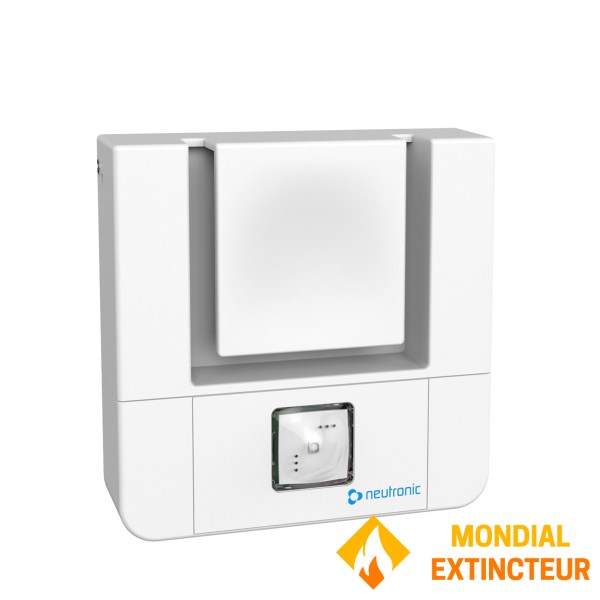

Diffuseur sonore et lumineux d'alarme feu radio - Adressable

TX4 RANGE

The sound and light radio-addressable diffuser of type 4 can be connected to an alarm network of up to 255 devices.

This type of equipment is intended for use in areas open to the public and workers.

The type 4 addressable radio fire alarm system has a maximum range of 800 meters in free field and 200 meters in obstructed field.

The lighting system is designed for the deaf and hearing-impaired, so that they can be alerted to a fire alarm.

Package contents

• 1 Sound and light Type 4 addressable diffuser
• 1 9V type 6LR61 alkaline battery.
• 2 1.5V AA alkaline batteries
• 1 Notice

Product details

• LoRa-certified device link control
• Free-field range: up to 800 m
• Power supply: 1 x 9V 0.62 Ah type 6LR61 alkaline battery
• Radio card power supply: 2 AA alkaline batteries
• Autonomy: 2 years standby + 2.5 hours alarm
• General alarm duration: 6 min 30 s
• Range in obstructed field: up to 200 m
• Number of devices: 255
• Radio frequency: 868.3 MHz
• Material - Color: ABS - White
• Enclosure protection: IP 40 / IK 07
• Dimensions (mm): 268 x 135 x 50
• Weight (with packaging): 650 g
• Batteries supplied
