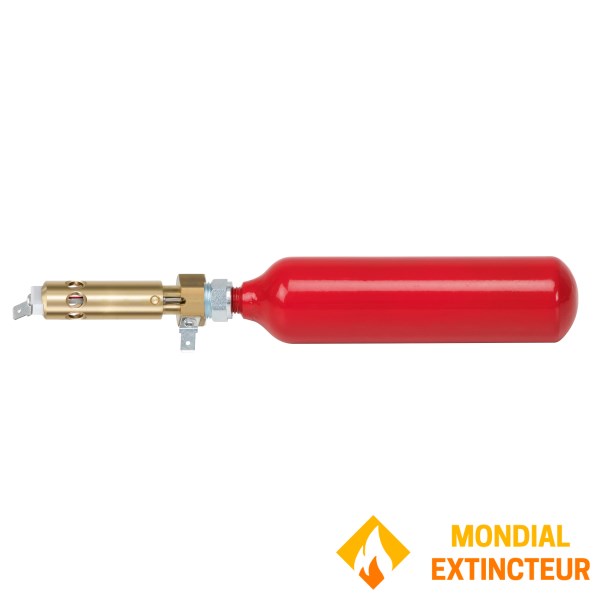

Self-contained extinguishing system with relay for electrical cabinet 0.32m3 68°C

The Fire Amulet is a self-contained automatic extinguishing system for use in small, inaccessible spaces such as electrical cabinets, bays and so on.
Important information: Do not use in rooms, machine tools or open spaces.
The Fire Amulet is a self-contained automatic extinguishing system that reacts when a temperature threshold is exceeded. When the temperature exceeds the threshold, a spring mechanism strikes the cartridge lid and releases the extinguishing agent.
The extinguishing agent contained in the red cartridge is a fluid manufactured by 3MTM NovecTM.
The extinguishing agent NovecTM is non-conductive and causes no degradation or residue. The cartridge contains 90% NovecTM and 10% nitrogen, which acts as a propellant for the NovecTM agent. The nitrogen is pressurized to 60 bar.
Important information: The ambient temperature in the area to be protected, where the Fire Amulet will be installed, must not exceed 100°C.

Technical specifications :

• Protected volume: 0.32 m3
• Triggering: 68°C
• Extinguishing solution for small volumes.
• Non-conductive extinguishing agent.
• Zero degradation, zero residue.
• With deferral.
