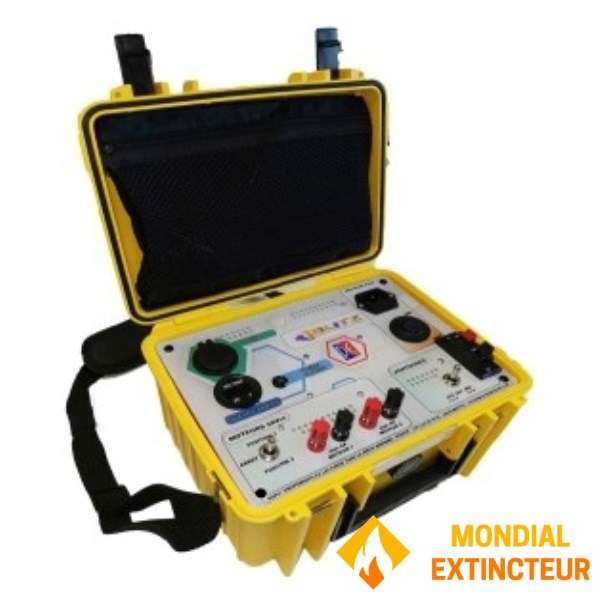

Electrical kit for field test

Description

Equipped with batteries to test and control electrical installations on your worksite, easily and autonomously.

It is the ideal tool for :

• Order

Two motors or two 24DC/8A max cylinders each

One or two lines of cylinders for a total of 16 A

• Ordering suction pads:

24DC/3W max or 48DC/3W max

• Recharging electronic devices
• Test external batteries up to 48V

Technical specifications

Case material: Polypropylene

External case dimensions: 270x215x165 mm

Voltage: 24V / 5 Ah

24 Continuous volts Power: 384 W

Operating temperature: -5°c to + 40°c

Protection class (closed case): IP67

Output current: max. 16A distributed over 2 outputs

Autonomy: 20 min to 6h continuous

Charging time: 24H (Full charge: 0% to 100%)

Battery protection fuse: 20A/32V (Automotive type 11.9mm x 4mm x 16.2mm)

Charger Test Kit: Integrated

Charger fuse: 5x20mm / 10 AT ceramic
