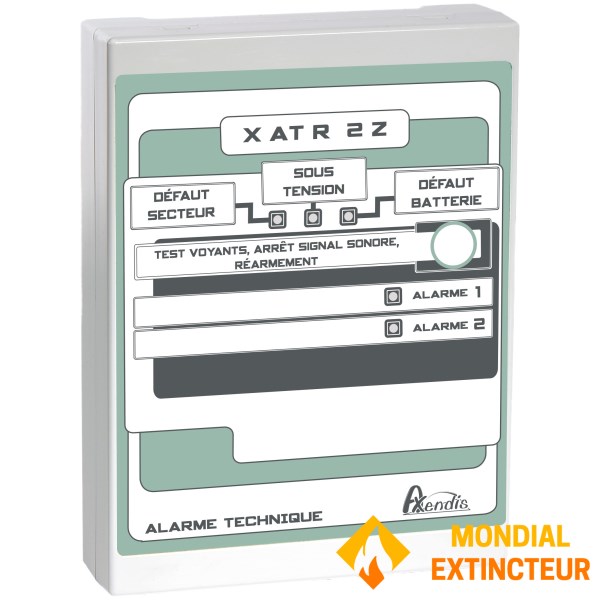

Technical Alarm 2 Zones + 2 Relays
Technical Alarm Panels are used in all types of buildings (boiler rooms, elevators, equipment rooms, etc.) to signal technical alarms in a facility.
They provide visual and audible alarm signals from a potential-free Normally Open or Normally Closed contact.
A dedicated LED indicates any mains or battery failure.
The front panel can be used to write zone or alarm labels.
Technical specifications :
- Operating temperature: -10°C to + 55°C
- Powered by Ni/Mh battery
- 2 Programmable output relay
- Configuration of each input (NO or NC contacts) and time delay
- Configuration of each input (automatic or manual reset)
- Small footprint
- Power supply: 230 Vac 50 Hz + 10% - 15%
- Table 2 entries
- Material / Color: PC / White
- Protection rating: IP 40 / IK 07
- Input connection: 1 pair 8 or 9/10ths max 1.5mm2
- User output: 19 V +/- 3 V max 40 mA
- 2 nO or NC dry contact outputs (selectable via jumpers) max 1A 30V
- Transfer bus (max 2 transfer boards): 1pair 8 or 9 th - Batteries: Ni-Mh 9V 280 mAh
- Weight : Net - 415 g Brut - 470 g
- Dimensions: (mm) H 160 x W1120 x D 41
- Reference : 11320
