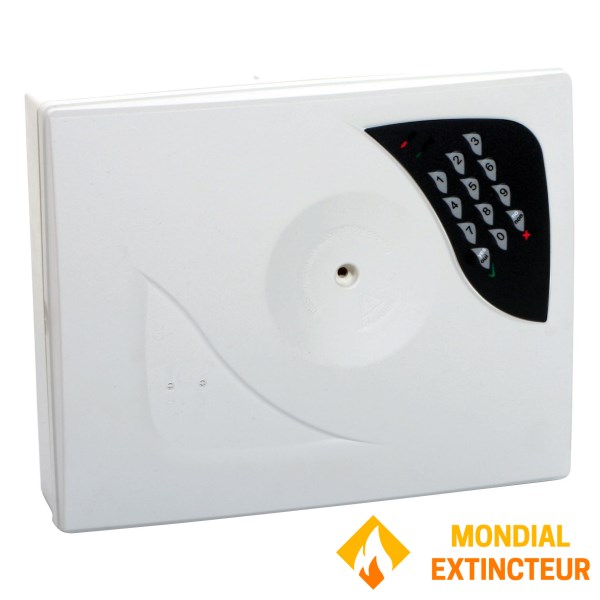

PSTN telephone transmitter

A stand-alone multi-protocol voice and digital telephone transmitter incorporating the latest technological innovations, it offers fully voice-guided programming, including remote control of lighting and heating, alarm system status and even hands-free intercom.

Main features :

2G / 3G / ETHERNET compatible

RJ45 network socket for sending digital alarms via ETHERNET

Integrated Web server for product configuration.

Program update via ETHERNET or Data-GSM.

Possibility of forcing an operator when using multi-operator cards.

Configurable IP acknowledgement mode.

Transformation of CESA CONTACT ID and SIA protocols into IP DC09 protocol.

Integrated antenna on standard SMA connector (CAPT'+ remote antenna optional).

Web server and voice programming interface.

2 configurable inputs (trigger mode and SMS)

2 programmable outputs on SWITCH'GSM IP 3G

3 programmable outputs on SWITCH'GSM IP 3G 230.

Activation of outputs by caller number recognition, customizable SMS, or by calling the product's voice server.

PIN deletion via keypad or Web server.

Evaluation of the reception level of the various SIM-free networks.

Cyclic test function via SMS.

Deletion of dialing prefix for emergency mode.

Time-stamped event memory.

Forced gateway mode per input in the event of a transmission fault on the transmitting control unit or telephone transmitter.

Remote cyclic test by activating an output and forcing automatic gateway mode ? power failure SMS (battery and mains on 230 version)

PSTN telephone line fault SMS

IP supervision of ETHERNET link and Data-GSM
