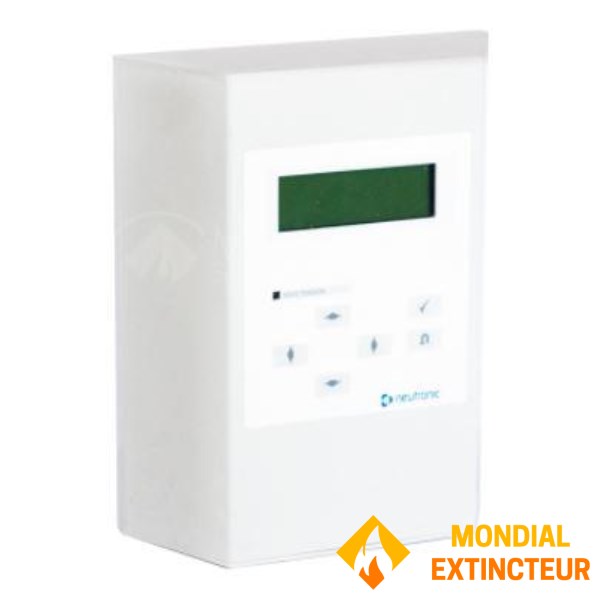

Technical alarm summary table

Technical alarm panels are used in all types of buildings (boiler rooms, lifts, plant rooms, etc.) to signal technical faults in installations.

The input data must be potential-free normally open or closed contacts. This system allows :

- Assign names to input contacts for easier readability using software and a PC.

- Display the logbook (JDB) on a computer in real time via a USB cable and software.

- Centralise data from input modules to reduce the number of cables and cut installation time. The control unit :

- Manages the power supply to the input and communication modules.

- Centralises and records all faults detected by the input modules.

- Logbook sent to PC using software and USB cable.

- Name each input - Assign a priority relay for each input.

- Configure each input as Normally Open or Normally Closed

The input modules comprise :

- 16 entries.

- A " TEST " button to simulate a fault on all the module's inputs.

- The encoder wheel is an option that is not currently used.

Output modules :

- Includes 16 relays.

- Used to report the status of an input module. They are used to report information remotely, to a telephone transmitter for example.

- Each output module has a " TEST " button to simulate the change of state of all the relays on the electronic board.

- It is not possible to assign the input of an input module to the output of an output module. It is the module as a whole that can be mapped?
