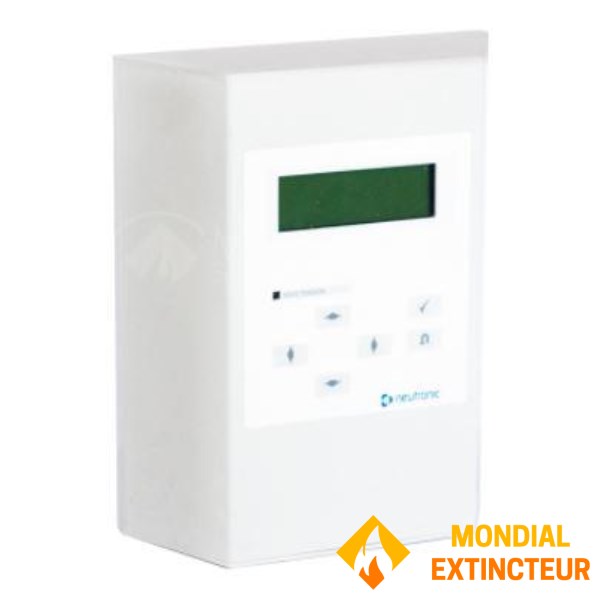

Technical alarm summary table

Technical alarm panels are used in all types of buildings (boiler rooms, elevators, equipment rooms, etc.) to signal technical faults in installations.

Inputs must be potential-free contacts, normally open or closed. This system allows :

- Assign names to input contacts for easier readability, using software and a PC.

- Display the logbook (JDB) on a computer in real time via a USB cable and software.

- Centralize data from input modules to reduce the number of cables and installation time. The :

- Manages power supply to input modules and communication.

- Centralizes and records all faults detected by input modules.

- Send logbook to PC via software and USB cable.

- Name each input - Assign a priority relay for each input.

- Configure each input as Normally Open or Normally Closed

Input modules include :

- 16 entries.

- A " TEST " button to simulate a fault on all the module's inputs.

- The encoder wheel is an option that is not currently used.

Output modules :

- Includes 16 relays.

- Used to report the status of an input module to a remote device, such as a telephone transmitter.

- A " TEST " button on each output module simulates the change of state of all relays on the electronic board.

- It is not possible to assign the input of an input module to the output of an output module. It is the module as a whole that can be mapped..
